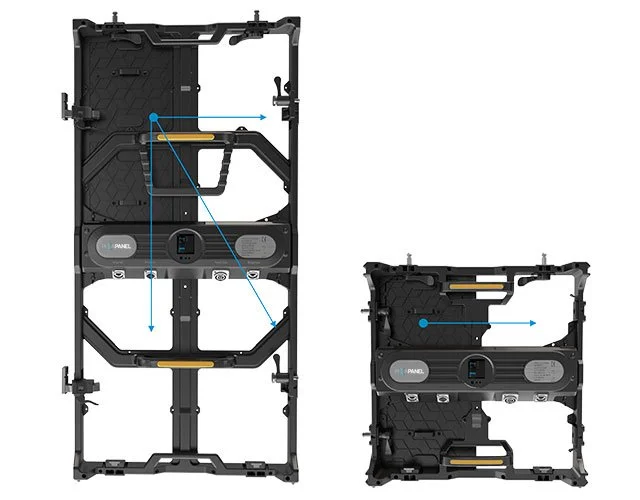

ULTRA SERIES

Outdoor Panel

Technical Specification

  • Pixel Pitch - 3.9mm | 4.8mm

  • Pixel composing - SMD 3 in 1

  • Brightness - 1000cd

  • Refresh - 3840Hz

  • Viewing Angle - 140°(H)/140°(V)

  • Cabinet sizes -

    • 1000mm x 500mm x 96mm / 39.37″ x 19.685″ x 3.779″

    • 500mm x 500mm x 96mm / 19.685″ x 19.685″ x 3.779″

  • Weight - 13.5kg / 9.5 kg

  • Lifetime - 100,000 hours

  • Max power - 200W

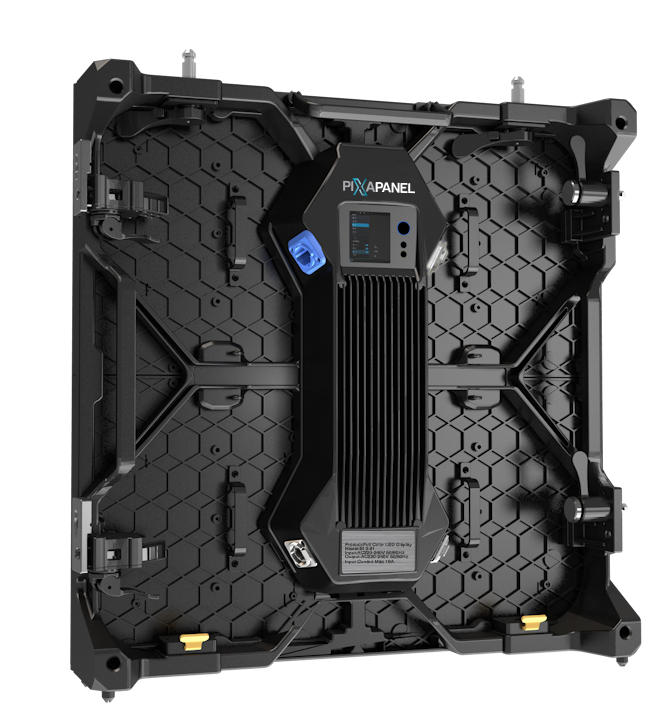

ECHELON SERIES

Indoor Panel

Technical Specification

  • Pixel Pitch - four options: 2.6mm | 2.8mm | 3.1mm | 3.9mm

  • Pixel composing - SMD 3 in 1

  • Brightness - 1000cd

  • Refresh - 3840Hz

  • Viewing Angle - 140°(H)/140°(V)

  • Optional curve latches convex or concave arrangement

  • Cabinet size - 500mm x 500mm x 100mm / 19.685″ x 19.685″ x 3.93″

  • Weight - 9.5 kg

  • Lifetime - 100,000 hours

  • Max power - 210W

T Series

Indoor / Outdoor Panel

Technical Specification

  • 5.9mm, 4.8mm, 3.9mm and 2.6mm pixel pitch

  • Pixel composing - SMD 3 in 1

  • Brightness - 5000cd (outdoor version) 1200cd (indoor version)

  • Refresh - 3840Hz

  • Viewing Angle - 140°(H)/140°(V)

  • Cabinet size - 1000mm x 500mm x 75mm / 39.37″ x 19.685″ x 2.95″

  • Weight - 14.5 kg / 31.97lb

  • Protection IP65 Front / IP65 Rear (outdoor version)

  • Lifetime - 100,000 hours

  • Max power - 720W (outdoor version)

  • Average power - 240W (outdoor version)
